J2me中使用Canvas创建高级菜单

原创|其它|编辑:郝浩|2009-08-26 11:28:28.000|阅读 1140 次

概述:本文介绍了一个描述了如何使用低级UI API的案例,也就是Canvas来创建高级菜单。

# 界面/图表报表/文档/IDE等千款热门软控件火热销售中 >>

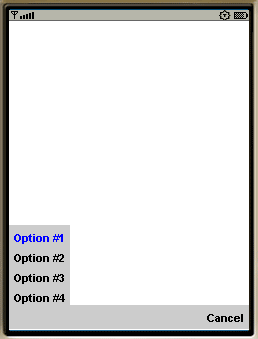

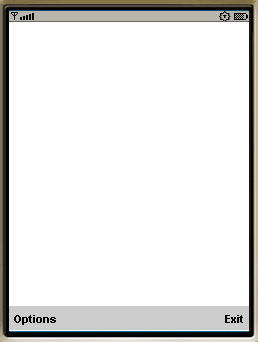

  这个案例描述了如何使用低级UI API,也就是Canvas来创建高级菜单,界面如下图所示:



  本案例共包括三个类,MIDlet,GUI和Menu。其中,当MIDlet启动后,Options和exit会绘制在屏幕的底部,当用户按左或者右软键的时候,程序会根据键值响应不同的动作。例如选择options后,

  会弹出menu供用户选择。

  GUI类持有一个Menu对象,并且根据用户的输入来改变Menu的状态,然后重新绘制屏幕。事实上menu只有两种状态,一种是激活的,一种是非激活的。只有激活状态下,菜单才会显示出来,并且可以接受用户的上下左右选择,当用户选择了Menu里面的选项之后,GUI会把用户的选择显示在屏幕上。代码如下所示:

  Midlet.java
  import javax.microedition.midlet.*;
  import javax.microedition.lcdui.*;
  public class Midlet extends MIDlet {
  private Display display;
  private GUI gui;
  public void startApp() {
  display = Display.getDisplay(this);
  if (display == null) {
  destroyApp(false);
  } // end if display is not allocated
  gui = new GUI(this);
  display.setCurrent(gui);
  gui.start();
  } // end startApp
  public void pauseApp() {
  } // end pauseApp
  public void destroyApp(boolean unconditional) {
  display.setCurrent(null);
  notifyDestroyed();
  } // end destroyApp
  } // end Midlet.java
  GUI.java
  import java.util.*;
  import javax.microedition.lcdui.*;
  import javax.microedition.lcdui.game.*;
  import javax.microedition.media.*;
  import javax.microedition.media.control.*;
  import java.io.*;
  import javax.microedition.io.*;
  import javax.microedition.io.file.*;
  class GUI extends GameCanvas {
  private Midlet midlet;
  private Display display;
  private Graphics g;
  private Font font;
  private int width = 0;
  private int height = 0;
  private Menu menu;
  private String leftOption;
  private String rightOption;
  private String[] menuOptions;
  private int currentlySelectedIndex = 0;
  private boolean menuIsActive = false;
  /**
  * Creates a new instance of GUI.
  */
  public GUI(Midlet midlet) {
  super(false);
  this.midlet = midlet;
  font = Font.getFont(Font.FACE_SYSTEM,
  Font.STYLE_PLAIN, Font.SIZE_SMALL);
  setFullScreenMode(true);
  width = getWidth();
  height = getHeight();
  g = getGraphics();
  leftOption = "Options";
  // will be displayed only when menu is not active
  rightOption = "Exit";
  // will be displayed only when menu is not active
  menuOptions = new String[]
  {"Option #1", "Option #2", "Option #3", "Option #4"};
  menu = new Menu(leftOption, rightOption, menuOptions);
  } // end constructor
  public void start() {
  clearScreen();
  menu.drawInactiveMenu(this, g);
  } // end start
  // softkey codes may vary from phone to phone
  // -6 and -7 values are OK on Nokia phones
  private int LEFT_SOFTKEY_CODE = -6;
  // check it for your phone model
  private int RIGHT_SOFTKEY_CODE = -7;
  // check it for your phone model
  protected void keyPressed(int keyCode) {
  // work with menu according to its current state
  if (menuIsActive) { // draw active menu
  if (keyCode == RIGHT_SOFTKEY_CODE) {
  // draw inactive menu again
  clearScreen();
  menu.drawInactiveMenu(this, g);
  menuIsActive = false;
  } // end if "Cancel" was pressed on active menu
  // otherwise check navigation
  keyCode = getGameAction(keyCode);
  if (keyCode == UP) {
  currentlySelectedIndex--;
  if (currentlySelectedIndex < 0) {
  currentlySelectedIndex = 0; // stay within limits
  }
  clearScreen();
  menu.drawActiveMenu(this, g, currentlySelectedIndex);
  // repaint active menu
  } // end if UP button was pressed
  else if (keyCode == DOWN) {
  currentlySelectedIndex++;
  if (currentlySelectedIndex >= menuOptions.length) {
  currentlySelectedIndex = menuOptions.length - 1;
  // stay within limits
  }
  clearScreen();
  menu.drawActiveMenu(this, g, currentlySelectedIndex);
  // repaint active menu
  } // end if DOWN button was pressed
  else if (keyCode == FIRE) {
  // menu option is selected
  // simply draw selected option
  clearScreen();
  g.setColor(0x000000); // black
  g.drawString("[" +
  menuOptions[currentlySelectedIndex] +
  "] was selected", 10, 15, g.LEFT | g.TOP);
  menu.drawInactiveMenu(this, g);
  menuIsActive = false;
  } // end if FIRE button was pressed
  } // end if menu is active
  else { // draw inactive menu
  // check if the "Options" or "Exit" buttons were pressed
  if (keyCode == LEFT_SOFTKEY_CODE) { // "Options" pressed
  clearScreen();
  currentlySelectedIndex = 0;
  menu.drawActiveMenu(this, g, currentlySelectedIndex);
  // activate menu
  menuIsActive = true;
  } // end if "Options" was pressed
  else if (keyCode == RIGHT_SOFTKEY_CODE) {
  exitGUI();
  } // end if "Exit" was pressed
  } // end if menu is not active
  } // end keyPressed
  public void exitGUI() {
  midlet.destroyApp(false);
  midlet.notifyDestroyed();
  } // end exitGUI
  public void clearScreen() {
  g.setColor(0xffffff); // white
  g.fillRect(0, 0, width, height);
  flushGraphics();
  } // end clearScreen
  } // end GUI.java
  Menu.java
  import java.util.*;
  import javax.microedition.lcdui.*;
  import javax.microedition.lcdui.game.*;
  public class Menu {
  private String leftOption;
  // will be displayed when menu is inactive
  private String rightOption;
  // will be displayed when menu is inactive
  private String cancelOption = "Cancel";
  // also may be "Back" or something else
  private String[] menuOptions;
  private int padding = 5; // just like in CSS
  /**
  * Creates a new instance of Menu.
  */
  public Menu(String leftOption, String rightOption, String[]
  menuOptions) {
  this.leftOption = leftOption;
  this.rightOption = rightOption;
  this.menuOptions = menuOptions;
  } // end constructor
  public void drawInactiveMenu(GameCanvas canvas, Graphics g) {
  // create inactive menu font
  Font font = Font.getFont(Font.FACE_SYSTEM, Font.STYLE_BOLD,
  Font.SIZE_MEDIUM);
  int fontHeight = font.getHeight();
  // clear inactive menu background
  int width = canvas.getWidth();
  int height = canvas.getHeight();
  g.setColor(0xcccccc); // grey color
  g.fillRect(0, height - fontHeight - 2 * padding, width, height);
  // draw left and right menu options
  g.setFont(font);
  g.setColor(0x000000); // black
  g.drawString(leftOption, padding, height - padding,
  g.LEFT | g.BOTTOM);
  g.drawString(rightOption, width - padding, height - padding,
  g.RIGHT | g.BOTTOM);
  canvas.flushGraphics();
  } // end drawInactiveMenu
  public void drawActiveMenu(GameCanvas canvas,
  Graphics g, int selectedOptionIndex) {
  // create active menu font
  Font font = Font.getFont(Font.FACE_SYSTEM,
  Font.STYLE_BOLD, Font.SIZE_MEDIUM);
  int fontHeight = font.getHeight();
  // clear menu bar background
  int width = canvas.getWidth();
  int height = canvas.getHeight();
  g.setColor(0xcccccc);
  g.fillRect(0, height - fontHeight - 2 * padding,
  width, height);
  // draw default menu bar options
  g.setFont(font);
  g.setColor(0x000000); // black
  // draw "Cancel" option
  g.drawString(cancelOption, width - padding, height - padding,
  g.RIGHT | g.BOTTOM);
  canvas.flushGraphics();
  // draw menu options
  if (menuOptions != null) {
  // check out the max width of a menu
  (for the specified menu font)
  int menuMaxWidth = 0;
  int menuMaxHeight = 0;
  int currentWidth = 0;
  // we'll simply check each option and find the
  maximal width
  for (int i = 0; i < menuOptions.length; i++) {
  currentWidth = font.stringWidth(menuOptions[i]);
  if (currentWidth > menuMaxWidth) {
  menuMaxWidth = currentWidth; // update
  }
  menuMaxHeight += fontHeight + padding;
  // for a current menu option
  } // end for each menu option
  menuMaxWidth += 2 * padding;
  // padding from left and right
  // now we know the bounds of active menu
  // draw active menu's background
  g.setColor(0xcccccc);
  g.fillRect(0, // x
  height - fontHeight -
  2 * padding - menuMaxHeight, // y
  menuMaxWidth,
  menuMaxHeight);
  // draw menu options (from up to bottom)
  g.setFont(font);
  int menuOptionX = padding;
  int menuOptionY = height - fontHeight - 2 * padding
  - menuMaxHeight + padding;
  for (int i = 0; i < menuOptions.length; i++) {
  if (i != selectedOptionIndex) {
  // draw unselected menu option
  g.setColor(0x000000); // black
  } // end if draw unselected menu option
  else { // draw selected menu option
  g.setColor(0x0000ff); // blue
  } // end if draw selected menu option
  g.drawString(menuOptions[i], menuOptionX,
  menuOptionY, g.LEFT | g.TOP);
  menuOptionY += padding + fontHeight;
  } // end for each menu option
  canvas.flushGraphics();
  } // end if menu options were specified
  } // end drawActiveMenu
  } // end Menu.java
